4mm+4mm Dry Laminated Wire Glass

Product Item: Laminated Wire Glass

5mm+5mm Mountains and Waters Painting Laminated Wire Glass

6mm, 7mm, 10mm Wire Glass

Key Specifications:

Special Features:

*Fire Resistance

Even if the wire glass is broken, the wire or net can support the fragments, which are hard to collapse and break. It can block the penetration of the flame and the fire powder when the flame is worn out and prevent the spread of the flame from the opening.

According to the Japanese Building Standard Act Article 64, made the provisions of fire doors. The opening of the outer wall must prevent the flame from spreading and burning. Combined the wire glass with B kinds of fire doors frame, it can be used as a B fireproof material.

*Safety

Wire glass can prevent debris flying apart. Even in the face of earthquakes, windstorms, shocks and other external pressure break the glass, the fragments are very difficult to fly, so compared with ordinary glass, Wire glass is much safety and not easy to cause debris scattered and wounding.

*Anti-theft Function

Ordinary glass is very easy to break, so thieves can sneak into illegal activities, while the wired glass is not. Even if the glass is broken, there is still metal wire mesh at work, so the thief can not easily steal. This anti-theft glass wire clip gives people a sense of security psychologically.

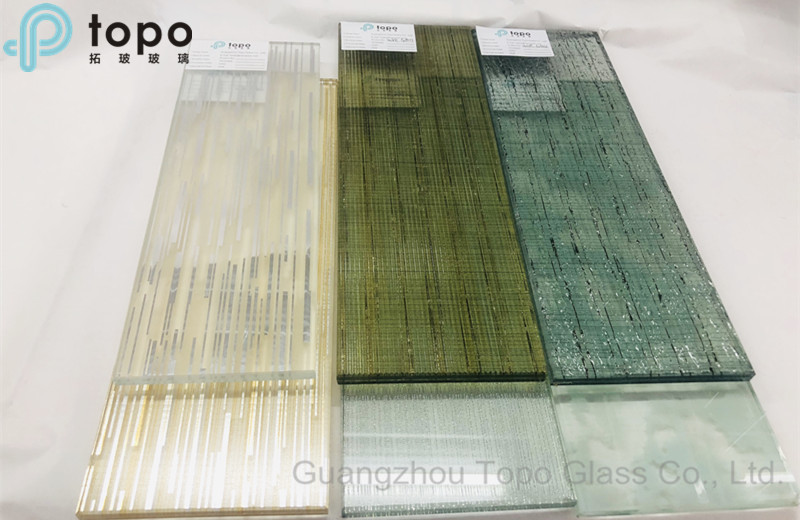

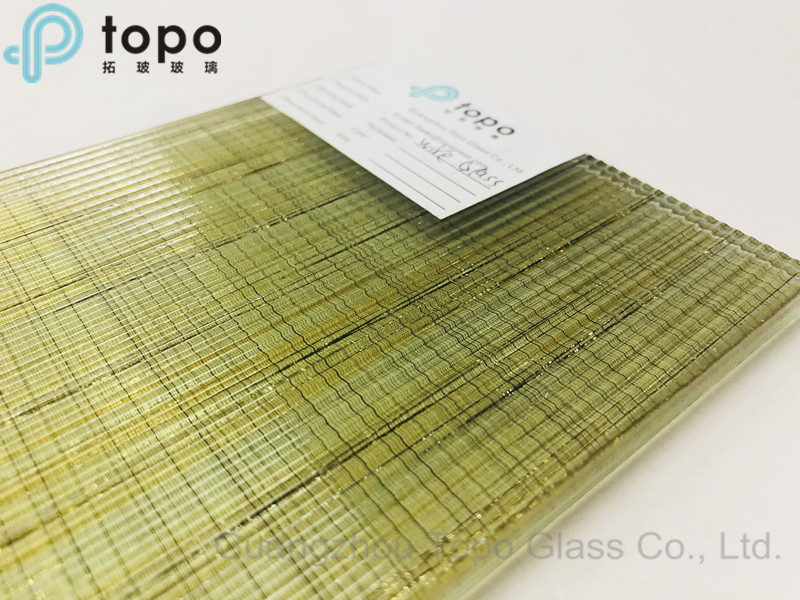

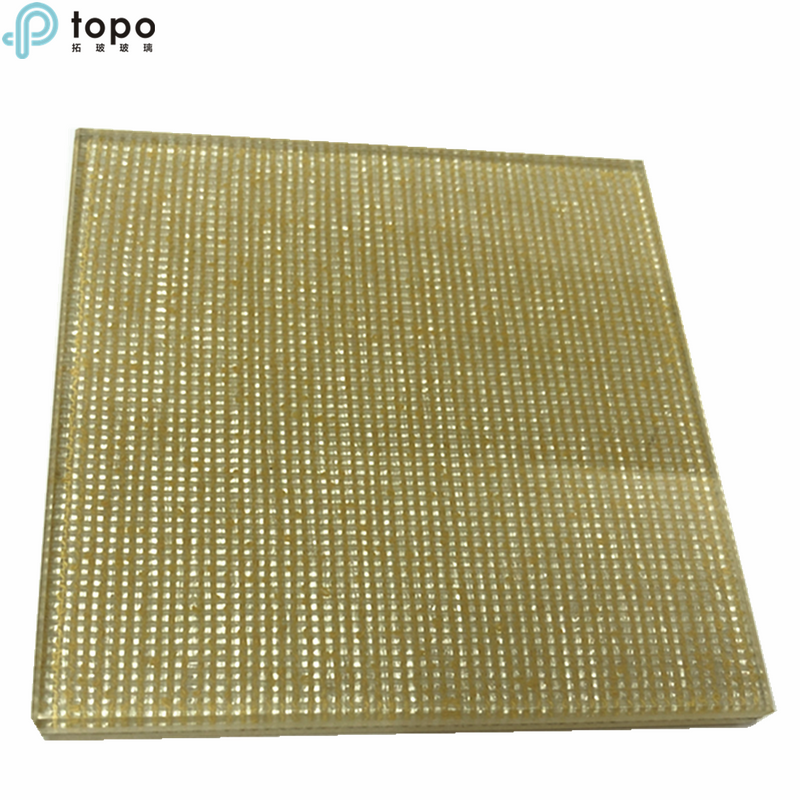

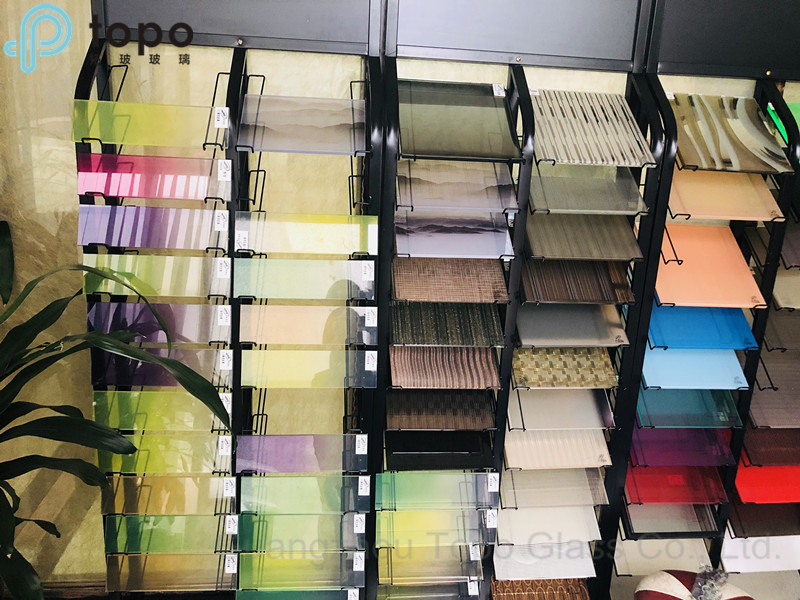

Product Show:

Frosted Safety Glass

Frosted Chicken Wire Glass

Safety Glass Sheets

Technical requirements

1.Screen Requirements

The wire mesh and metal wire used in the glass are divided into ordinary wire and special wire, the diameter of ordinary wire is above 0.4mm, or special wire is more than 0.3mm. Screen mesh glass should be treated with spot welding wire mesh.

2.The length and width size deviation tolerance is ± 4.0mm.

3.Bending degree

3.1 Clip embossed glass should be less than 1.0%.

3.2 Wire polished glass should be less than 0.5%.

4. The size of glass edge bulge, notch and skew glass edge bulge shall not exceed 6mm, the skew size shall not exceed 4mm. One piece of glass is only allowed to have a notch, the depth of the notch should not exceed 6mm.
