S-BC
Topo Glass
Product Details
Product Items: Borosilicate Glass
China Borosilicate Sheets Glass
4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm 25.4mm Borosilicate Sheets Glass
Key Specifications:
| Product No. | S-BC |
| Product name | Borosilicate Glass |
| Thickness | 1mm -- 25.4mm |
| Product Size | 1200mm×600mm 1150mm×850mm 1150mm×1700mm |
| Technics | Float Process |
| Structure | Solid |
| Identical temperature difference(K) | 100 >300(Strength) |
| Maximum working temperature(℃) | ≥450 |
| Softening temperature | 820±10 |
| Refractive(nd) | 1.47384 |
| Light transmission | 92%（thickness≤4mm） 91%(thickness≥5mm) |
| Tensile strength | 40-120Nmm-2 |
| Processing | pre-cut formats, edge processing |
| Processing temperature (104dpas) | 1220 ℃ |
| Specific heat | 0.9jg-1K -1 |
| MOQ | 60pcs |
| Loading Port | Nansha Port / Huangpu Port |
| Payments terms | T/T |
| Delivery Time | Within 15 working days |
Application Borosilicate 3.3 serves as a material of true function and wide applications | 1)Household electrical appliance (panel for oven and fireplace, microwave tray etc.); 2)Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles); 3)Lighting (spotlight and protective glass for jumbo power of floodlight); 4)Power regeneration by solar energy (solar cell base plate); 5)Fine instruments (optical filter); 6)Semi-conductor technology (LCD disc, display glass); 7)Medical technique and bio-engineering; 8)Safety protection (bullet proof glass) |
Technical Data:
Dimensions(mm):1200×600 1150×850 1150×1700
other formats upon request
Available thickness(mm):1--12
Density (g/㎝3 ) (at 25℃): 2.23±0.02
Co-efficient of expansion(α)(20-300℃):3.3±0.1×10-6
Softening point(℃):820±10
Identical temperature difference(K):100 >300(Strength)
Maximum working temperature(℃):≥450
Refractive(nd ) :1.47384
Light transmission:92%（thickness≤4mm）
91%(thickness≥5mm)
Processing:pre-cut formats, edge processing

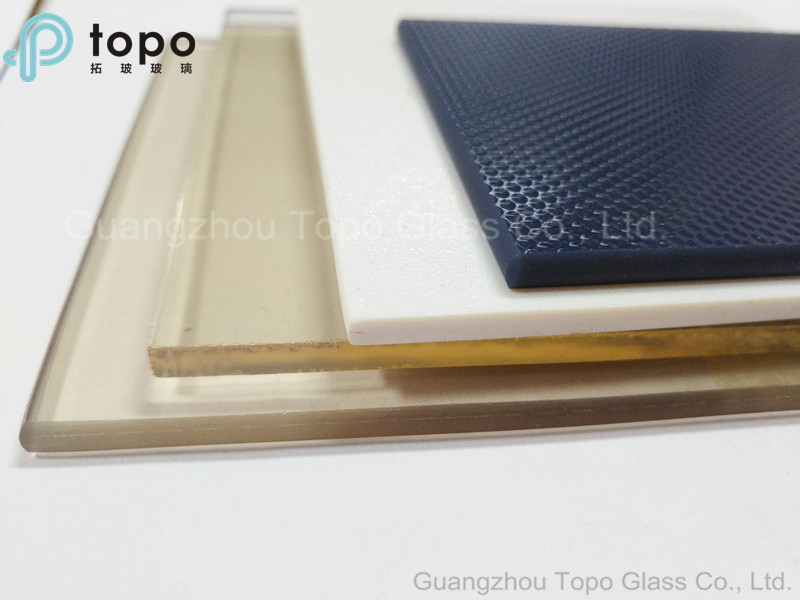

Product Show:
China Borosilicate Sheets Glass 3.3
Specificity:
1) Stronger resistance to fracture;
2) Borosilicate Sheets Glass is lower than ordinary glass dense;
3) When broken, borosilicate glass sheets cracks tend to be relatively large, rather than crushed (it will unit, not split);
4) Borosilicate 3.3 glass has a low dispersion (about 65 Abbe crowns) and a relatively low refractive index (the entire visible range 1.51-1.54);
5) The linear expansion coefficient is 3.3 ± 0.1 × 10-6 / K;
6) Resistant to Water, Acid and alkali ;
7) Superior corrosion resistance;
8) It has good thermal stability, chemical stability and electrical properties, it is resistant to chemical attack, thermal shock resistance, good mechanical properties, to withstand high temperature and other characteristics.
